Plastic Granulators

Top Line Wet

Bruno Folcieri is your Partner in Plastic Waste Size Reduction

Download Brochure

3D View

HIGHLIGHTS

  • suitable for the water grinding of contaminated materials
  • quality and reliability
  • high productivity
  • long-term durability
  • highly robust
  • oversized mechanics
  • constructed with top-quality materials and 100% made in italy
  • high safety standards
  • custom-made configuration
  • remarkably easy to maintain
  • wide range of models

Top Line Wet

Top Line Wet

Plastic Granulators

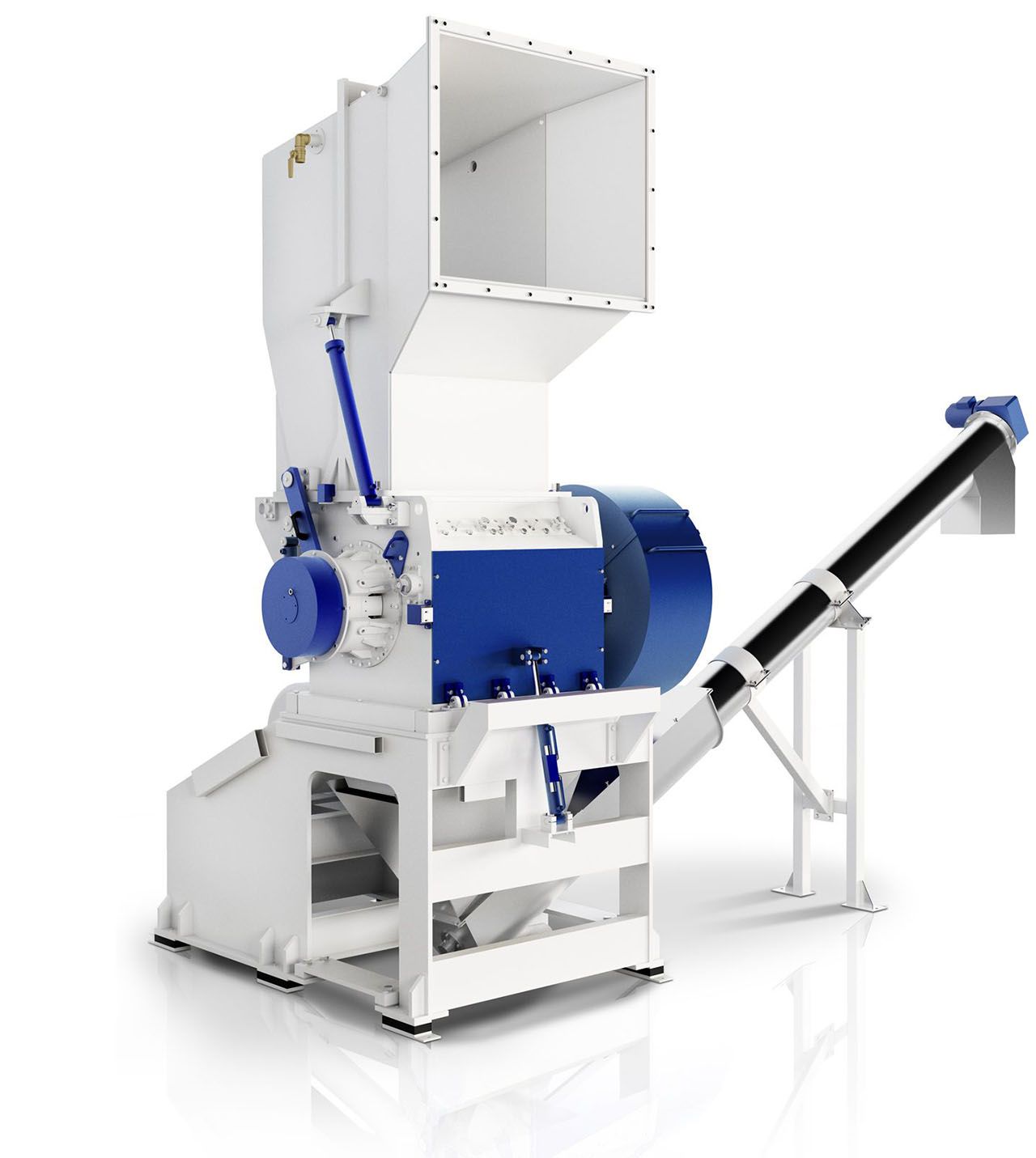

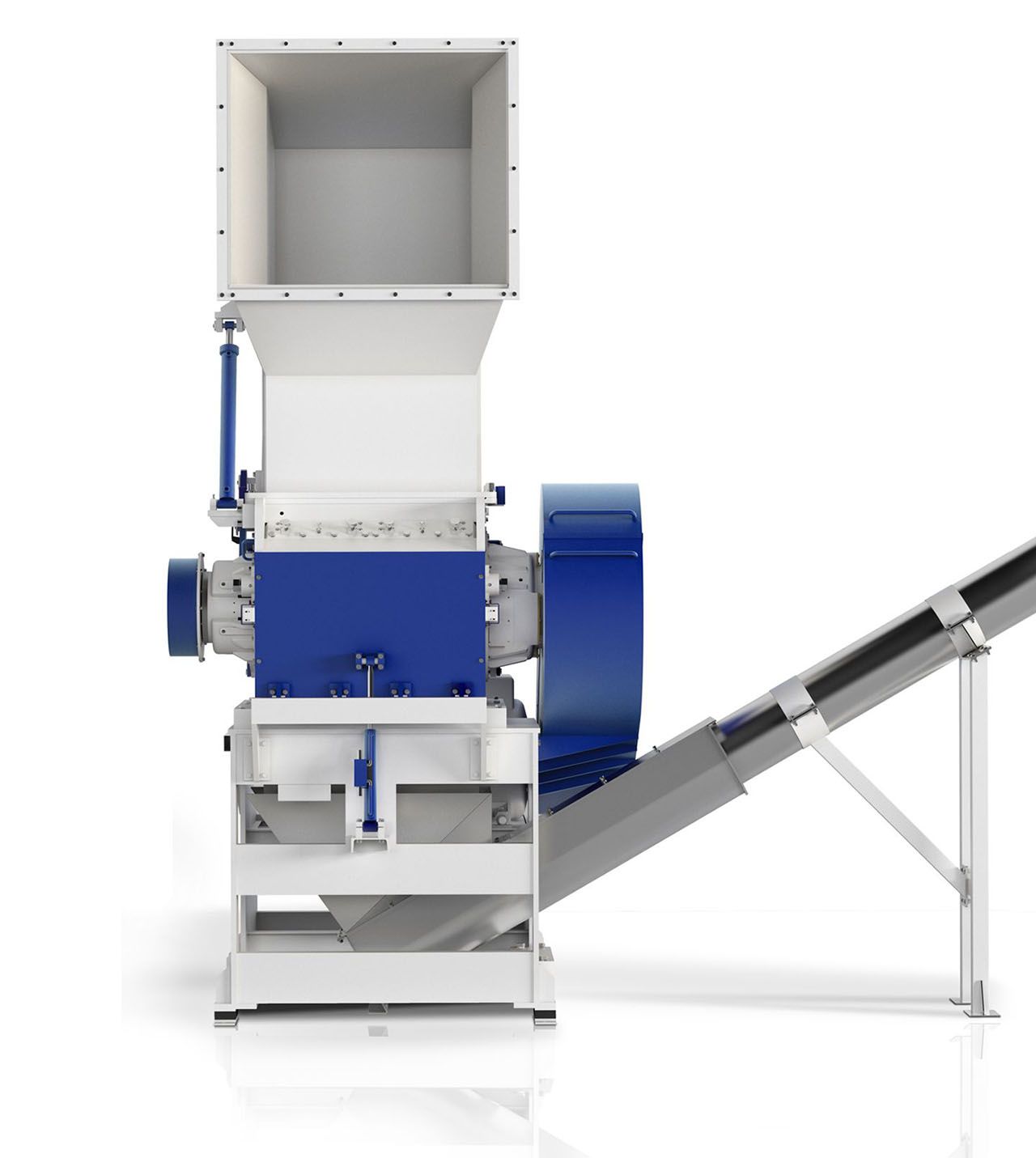

Top Line Wet

The TOP series of granulators are suitable for the water grinding of contaminated plastic products coming from post-consumer waste collection. The main advantage of using this type of granulator is that it combines a precise grinding phase with the pre-washing of the material in a single step, allowing a considerable proportion of impurities to be removed. The machines in this series stand out due to their highly sturdy and heavy-duty construction, whose main feature is the rotor, made from a solid forged monoblock without welding in order to be very resistant to wear and abrasion. Another unique characteristic is the interchangeability of many of the components which are subject to wear over time; for the grinding of abrasive materials, this includes the rotor blade holders and the cutting chamber protection plates.

SPECIAL CONFIGURATION
This configuration is recommended for the grinding of heavy and tough materials.
BENEFITS
  • Sorting screen with upper discharge surface
  • Pulley diam. 1400mm - weight 3.8 tonnes which ensures a higher cutting torque and therefore a greater cutting force, stabilising the rotation speed


PLASTIC GRANULATORS MODELS TOP LINE WET
Download: Brochure TOP LINE WET

available industry package 4.0

bruno folcieri is actively involved in the 4.0 industry, with systems that make the machines “intelligent communicating entities”, even when working remotely. integrated with the it and itc worlds, the remote assistance service allows changes to be made to the configuration of the control system, through a company tpc/ip network connection and an internet connection.

TECHNICAL SPECIFICATION

Model
Description
mm
mm
mm
mm
n°
n°
mm
rpm
kw
ø p
ø p
[t]
T151008W T1500X1000X830 WET 5100 2800 3000 1500x1000 4÷6 2 830 388 160÷250 1110 290 20
T150908W T1500X920X830 WET 5200 2900 3300 1500x920 4÷6 2 830 305 200÷250 1410 290 22
T150806W T1500X800X630 WET 4800 2800 2900 1500x800 3÷5 2 630 388 160÷200 1110 290 15
T121008W T1200X1000X830 WET 5100 2500 3000 1200x1000 4÷5 2 830 388 160÷250 1110 290 17
T120908W T1200X920X830 WET 5200 2600 3300 1200x920 4÷5 2 830 305 200÷250 1410 290 19
T120808W T1200X800X830 WET 5200 2600 3300 1200x800 4÷5 2 830 388 160÷250 1110 290 17
T120806W T1200X800X630 WET 4800 2500 2900 1200x800 4÷5 2 830 388 132÷200 1110 290 12
T100806W T1000X800X630 WET 4800 2300 2900 1000x800 3÷5 2 630 388 110÷160 1110 290 10
T100705W T1000X700X530 WET 4600 2100 2500 1000x700 3÷5 2 530 509 90÷110 730 250 8
T080705W T800X700X530 WET 4600 1900 2500 800x700 3÷4 2 530 509 75÷110 730 250 7

BENEFITS

  • external watertight bearing supports
  • long-term durability
  • easy to use
  • quick and easy to maintain
  • on-bench blade and counter-blade presetting
  • automatic-hydraulic opening and closing of the feed hopper, grinding chamber access compartment and screen-holder
  • hopper safety arm opening
  • anti-rotation rotor safety brake

stainless steel feed hopper

realizzata interamente in acciaio inox


Conveyor belt

drainage screw

made entirely of stainless steel


metal detector

cabina insonorizzazione
