Plastic Granulators

Top Line

Bruno Folcieri is your Partner in Plastic Waste Size Reduction

Download Brochure

3D View

HIGHLIGHTS

  • suitable for intensive and high-capacity operations
  • versatility of grinding
  • quality and reliability
  • high productivity
  • long-term durability
  • highly robust
  • oversized mechanics
  • constructed with top-quality materials and 100% made in italy
  • high safety standards
  • custom-made configuration
  • remarkably easy to maintain
  • wide range of models

Top Line

Top Line

Plastic Granulators
Top Line

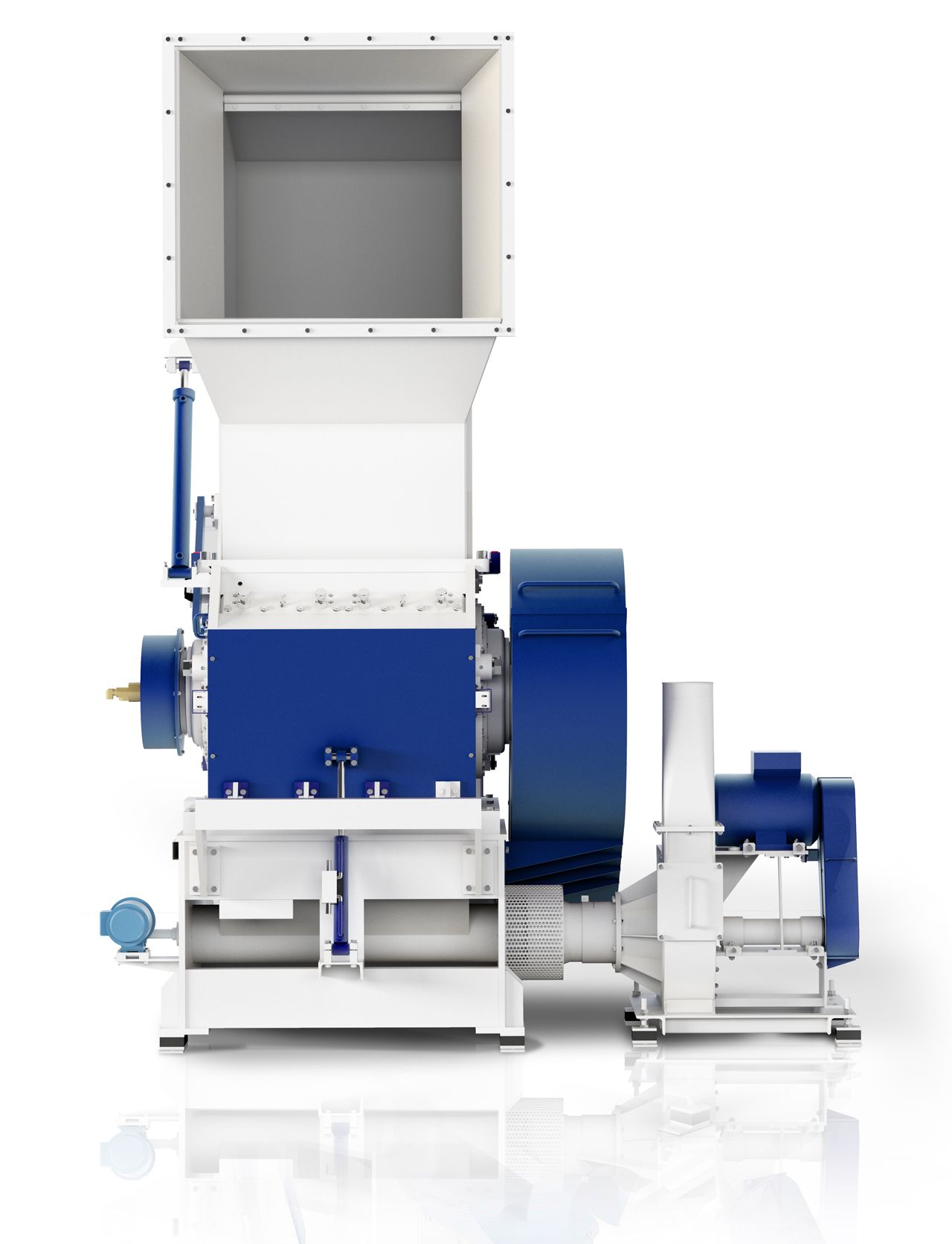

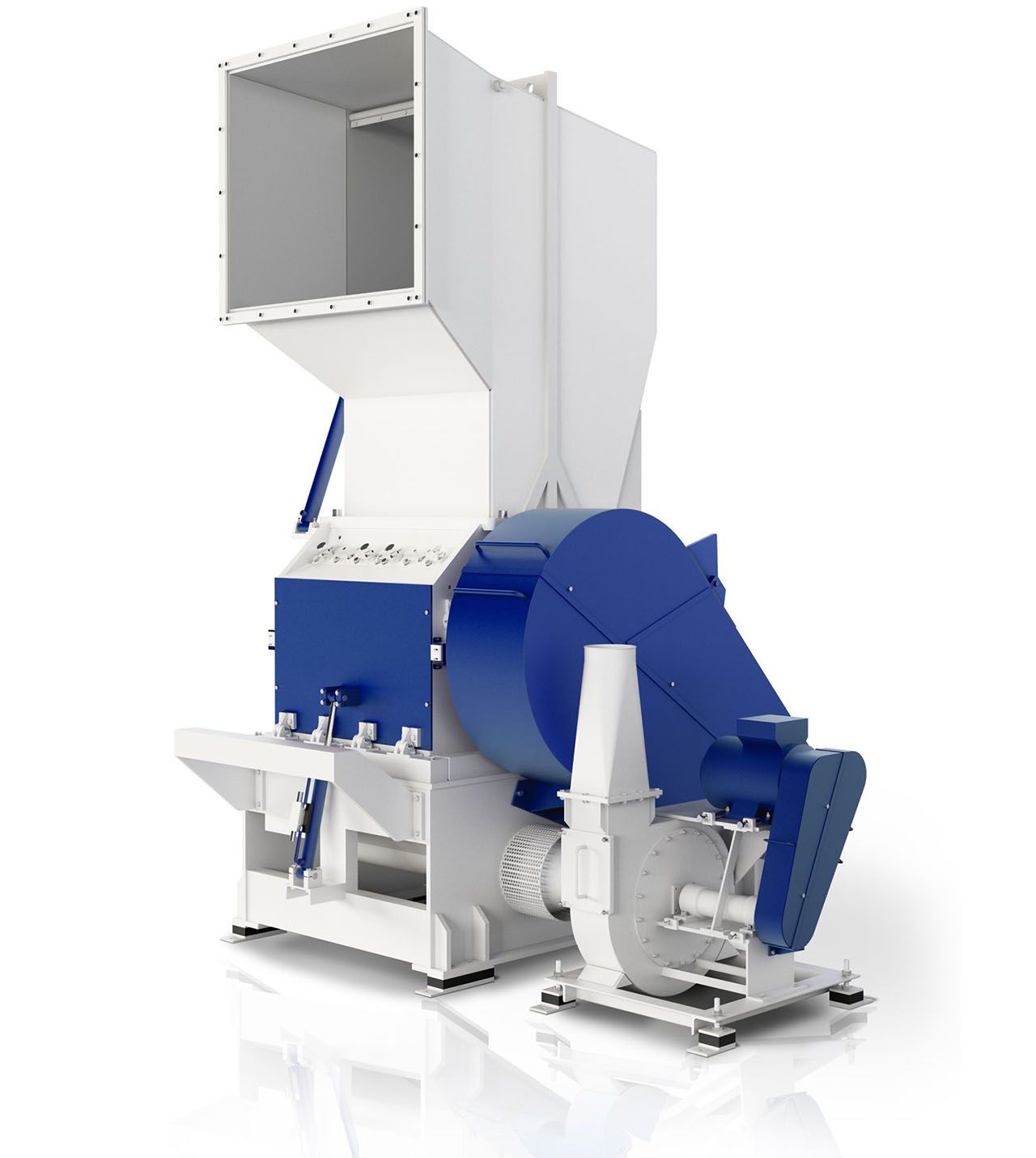

Granulators with a high production capacity suitable for particularly intensive applications, such as the grinding of heavy lumps, hard fibers, extremely thin films or simply large quantities of material. The great versatility in grinding operations allows for the management of a very wide range of plastic materials in terms of type and configuration. The machines in this series stand out due to their highly sturdy and heavy-duty construction, whose main feature is the rotor made from a solid forged monoblock whitoud welding. Another unique feature is the interchangeability of many of the components which are subject to wear over time, such as the rotor blade holders and the cutting chamber protection plates.
These machines are also available in the WET water version.

SPECIAL CONFIGURATION
This configuration is recommended for the grinding of heavy and tough materials.
BENEFITS
  • Sorting screen with upper discharge surface
  • Pulley diam. 1400mm - weight 3.8 tonnes which ensures a higher cutting torque and therefore a greater cutting force, stabilising the rotation speed


PLASTIC GRANULATORS MODELS TOP LINE
Download: Brochure TOP LINE

available industry package 4.0

bruno folcieri is actively involved in the 4.0 industry, with systems that make the machines “intelligent communicating entities”, even when working remotely. integrated with the it and itc worlds, the remote assistance service allows changes to be made to the configuration of the control system, through a company tpc/ip network connection and an internet connection.

TECHNICAL SPECIFICATION

Model
Description
mm
mm
mm
mm
n°
n°
mm
rpm
kw
ø p
ø p
[t]
T151008 T1500X1000X830 4600 2800 3000 1500x1000 4÷6 2 830 388 160÷250 1110 290 20
T150908 T1500X920X830 4700 2900 3300 1500x920 4÷6 2 830 305 200÷250 1410 290 22
T150806 T1500X500X630 4300 2800 2900 1500x800 3÷5 2 630 388 160÷200 1110 290 15
T150506 T1500X800X630 4500 2800 2800 1500x500 3÷5 2 630 388 160÷200 1110 290 13
T150405 T1500X450X530 3500 2600 2500 1500x450 3÷5 2 530 509 90÷132 730 250 9
T121008 T1200X1000X830 4600 2500 3000 1200x1000 4÷5 2 830 388 160÷250 1110 290 17
T120908 T1200X920X830 4700 2600 3300 1200x920 4÷5 2 830 305 200÷250 1410 290 19
T120806 T1200X800X630 4300 2500 2900 1200x800 3÷5 2 630 388 132÷200 1110 290 12
T100806 T1000X800X630 4300 2300 2900 1000x800 3÷5 2 630 388 110÷160 1110 290 10
T100705 T1000X700X530 4100 2100 2500 1000x700 3÷5 2 530 509 90÷110 730 250 8
T080705 T800X700X530 4100 1900 2500 800x700 3÷4 2 530 509 75÷110 730 250 7
T060504 T600X550X430 3100 1300 2000 600x550 3÷4 2 430 489 37÷55 575 190 3

BENEFITS

  • high production output
  • easy to use
  • quick and easy to maintain
  • cutting chamber and rotor water cooling
  • optimal access to the cutting chamber during cleaning and maintenance
  • on-bench blade and counter-blade presetting
  • automatic and hydraulic opening and closing of the feed hopper, grinding chamber access compartment and grating holder
  • hopper safety arm opening
  • anti-rotation rotor safety brake
  • high mechanical strength base with anti-vibration bars

sheet feeting rollers

pusher for bulky materials

Conveyor belt

fan for ground transport

made of heavy carpentry with parts subject to greater wear in wear-resistant steel


material unloading screw

metal detector

cabina insonorizzazione
ITALIAN
QUALITY
since 1946
